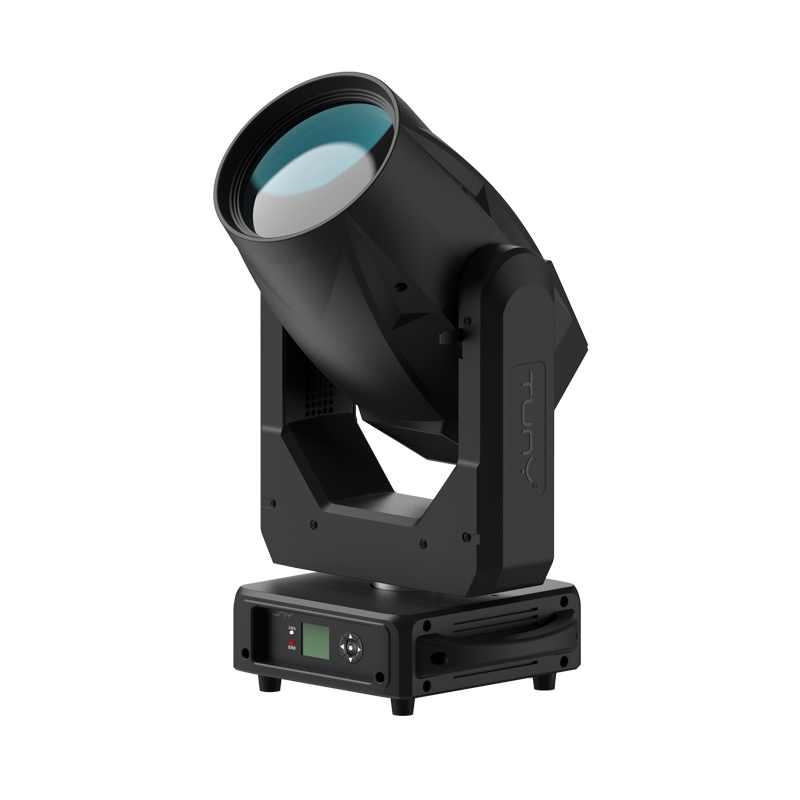

T650 Prism King
T650 Prism King

Technical Specifications
Main Feature
·The lens of the lights: 180mm
·Electric focusing system
·1 color wheel: 14 colors + white, rainbow effect
·1 fixed gobos: 13 gobo + white
·3 Prism wheel: 4 bidirectional rotatable prisms; 8 prism, 18 prism,
48 prism,6-Face linear prism
·The frost effect
·0-100% smooth dimming
·Various strobe speed effects
Technical Specifications
·Lamp: PHILIPS 420WLL
·Color temperature: 7800K
·Beam angle: 1.6°
·Channel mode: 16CH
·Control protocol: DMX512, RDM
·X-axis/Y-axis: 540°/270°
·Precision: 16-bit precision scan
·Correction: X-axis/Y-axis position out-of-step automatic correction
·Display: LCD display
·Signal input/output: three-core XLR socket
·Protection class: IP20
Physical Parameters
·Input power: 100-260V~ 50/60Hz
·Top power: 550W
·Lights size: 328x260x598mm
·Carton size: 415x490x655mm
·Flight case: 710x430x810mm (2 in 1)
·Net weight: 18kg
·Gross weight: 21kg (Including carton, 1 pack 1 )
60kg (Including flight case, 2 pack 1)

Dimension Drawing

Illuminance Map
