TN-VJ02 LED Dual Color Temperature Video Spot Lights
TN-VJ02 LED Dual Color Temperature Video Spot Lights

The optics, structure and software of this product are all designed by top international engineers.
The light source adopts imported LED light source, which has long life and high light efficiency.
The heat dissipation of the light source adopts a radiator specially processed and formed from pure aluminum, and the thermal conductivity is 2.5 times that of ordinary aluminum materials, and an ultra-quiet fan is used.
The lamp body is made of aluminum alloy material, which makes the installation and operation light and convenient.
This product needs different places, color temperature, display index, brightness, focusing method, control method, lamp body color, etc., can be generated according to customer needs.
The input voltage of the product can be connected in series with each other, and the number of phase strings can be up to 8 in each group.
Technical Specifications
LED dual color temperature video spotlight (Fresnel focus)
Rated voltage: AC100-240V/50-60Hz
Rated power: 220W
Light source: module LED light source composed of 24 5050 LEDs (warm white 3200K + positive white 5600K),
single 5050LED light source power (warm white 3200K 10W, positive white 5600K 10W)
Light source output power: warm white 3200K/200W, positive white 5600K/200W
Light source life: 50,000-100,000 hours
Color temperature: 3200-5600K adjustable
CRI: ≥93, TLCI≥91
Product output luminous flux: 3200K/4050 lm, 5600K/4260 lm
Light angle: 18-65 degrees adjustable
Control signal: DMX signal
DMX channels: 4 channels
Control mode: DMX signal control or manual key control
Dimming: smooth linear dimming without jitter above 16 bits, no delay in dimming, dimming frequency above 20K
Focusing method: electronic focusing
Cooling fan: The adjustable speed smart fan is customized according to the characteristics of the product, and the fan speed (sound) can be adjusted intelligently according to the
power of the product
Working environment temperature: -25℃ to 40℃
Protection class: IP20
Inner size: 56X28.5X28.5cm
Packing size: 67X34.5X33.5cm
Net weight: 10.2kg (light: 9.4kg, shade: 0.8kg)
Gross weight: 12.5kg

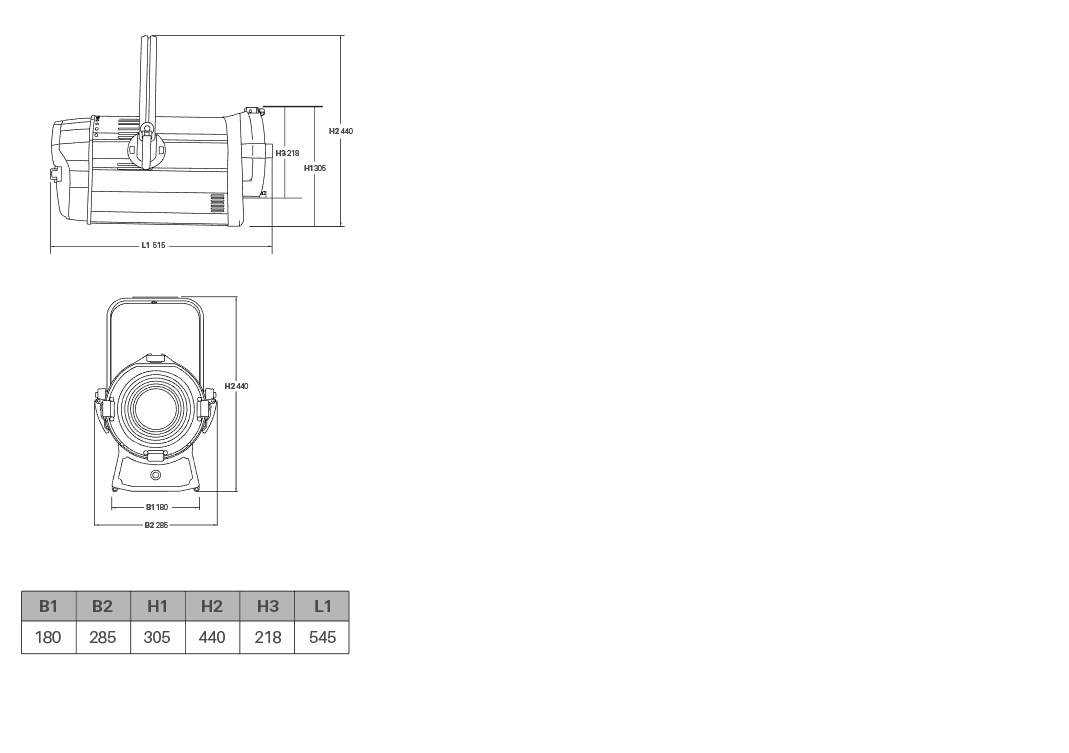

Dimension Drawing

Illuminance Map
